What Is a Control Panel?
When you walk into any industrial facility—whether it’s a food processing plant, automotive factory, or water treatment facility—you’re likely to see one or more control panels managing the equipment behind the scenes. But what exactly is a control panel, and why is it so critical to modern automation?
In this post, we’ll break down the basics of what a control panel is, what it does, and why it’s a vital component in industrial systems.

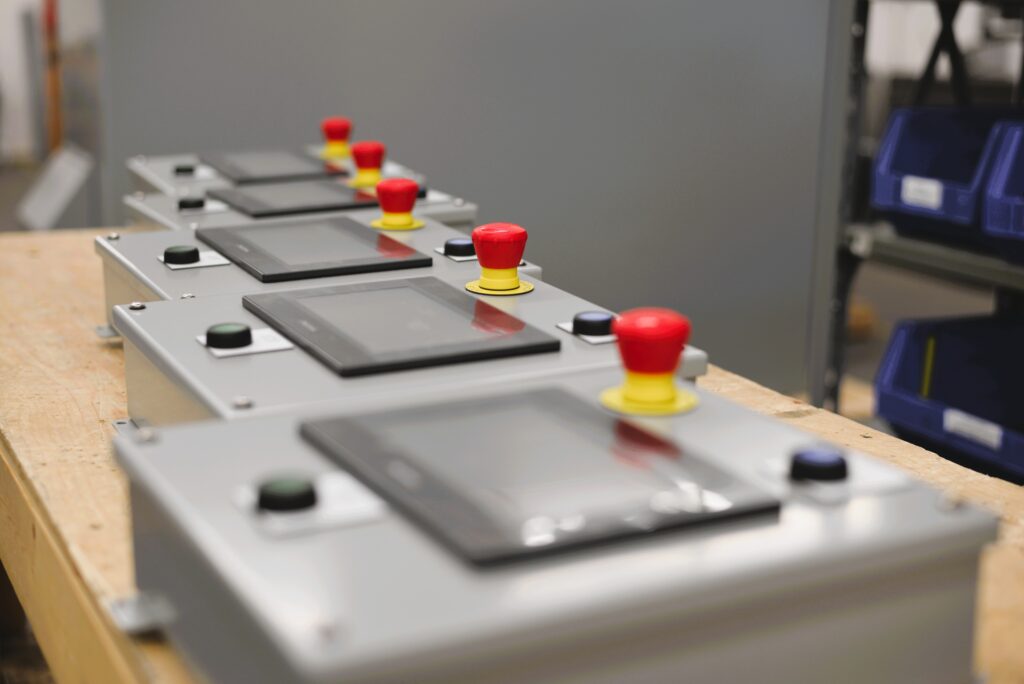

The Basics: What Is a Control Panel?
A control panel is an enclosure that houses electrical components used to control and automate machinery or processes. It serves as the centralized hub where inputs (like sensors, switches, or PLC signals) are received and outputs (like motors, actuators, or alarms) are managed.
In short: Control panels are the brains and muscle of automated systems.
Core Components of a Control Panel
While each control panel is custom-built for its specific application, most include a combination of the following components:
-
- Power Distribution Equipment: This includes main breakers, branch circuit breakers, fuses, and disconnect switches that manage and protect the incoming electrical supply. These components ensure that power is safely distributed across the system and allow for safe isolation during maintenance or emergency shut-off.
-
- Programmable Logic Controllers (PLCs): Often referred to as the “brains” of the system, PLCs receive inputs from sensors and field devices, process logic based on pre-programmed instructions, and send output signals to control actuators, motors, lights, and alarms. Many panels include modular PLCs that can be expanded for future needs.
-
- Relays and Contactors:These electromechanical devices are used to switch electrical circuits on or off. Contactors typically handle higher-current loads like motors, while relays are used for lower-current signal switching or logic interlocking.
-
- Motor Starters and Overload Protection: Used for starting and protecting motors, motor starters include a contactor and overload relay to ensure motors operate safely and within their rated parameters. Variable Frequency Drives (VFDs) or soft starters may also be used for speed control and smooth acceleration.
-
- Terminal Blocks: Terminal blocks provide clean, organized connection points for internal and external wiring. They simplify installation, service, and troubleshooting while maintaining safety and reliability.
-
- Human-Machine Interfaces (HMIs): Touchscreens, displays, or simple button-and-light panels allow operators to monitor system status and interact with the control logic. HMIs can range from basic LED indicators to full-color graphical interfaces with real-time data visualization.
-
- Surge Protection Devices (SPDs): To protect sensitive electronics from voltage spikes caused by lightning strikes or power disturbances, SPDs are commonly installed at key entry points in the panel.
-
- Control Power Transformers or Power Supplies: These devices convert incoming voltage (e.g., 480V or 600V) to lower voltages (e.g., 120V AC or 24V DC) used by control devices, relays, and PLCs. Proper sizing and protection are essential for long-term reliability.
-
- Network and Communication Modules:For modern industrial applications, panels often include Ethernet switches, PROFIBUS, Modbus, or other fieldbus communication devices that enable integration with SCADA systems, remote monitoring, and IIoT connectivity.
-
- Wiring, Duct, and Labeling: Conductors are routed through wire ducts to keep the panel organized, minimize EMI, and ensure safety. Clear, durable labels on all wires and devices are critical for maintenance and troubleshooting, especially in complex systems.
-
- Enclosure: The physical cabinet that houses all these components. Enclosures are chosen based on the environment—NEMA or IP-rated for dust, water, or hazardous locations. Internal layout design ensures proper spacing, airflow, and compliance with electrical codes.
What Does a Control Panel Do?
A control panel performs three key functions:
-
- Receives Input Signals
These could be sensor readings, button presses, or data from a supervisory system.
- Receives Input Signals
-
- Processes Logic
Based on the programming in the PLC or control relays, the system decides what action to take.
- Processes Logic
-
- Sends Output Signals
This might start a motor, open a valve, or trigger an alarm depending on the logic and conditions.
- Sends Output Signals
Types of Control Panels
-
- Motor Control Panels: Focused on starting, stopping, and protecting motors.
-
- Process Control Panels: Used for managing continuous processes (e.g., mixing, batching, temperature control).
-
- PLC Panels: Contain programmable controllers and are often used in high-level automation.
-
- VFD Panels: Integrate Variable Frequency Drives to control motor speeds.
-
- Remote I/O Panels: Deployed in large or distributed systems, these panels expand the I/O capabilities of a centralized PLC.
-
- Power Distribution Panels: These panels manage the distribution of electrical power within a system or facility.
-
- Network and Communication Panels: Dedicated to housing switches, routers, and industrial gateways that manage data flow between PLCs, HMIs, and enterprise-level systems.
Why Custom Control Panels Matter
No two industrial processes are exactly alike. That’s why off-the-shelf solutions rarely meet the needs of complex systems. At ACP Solutions Inc., we build custom UL 508A-certified control panels tailored to each customer’s requirements—ensuring safety, reliability, and long-term performance.
Final Thoughts
Control panels might not get much attention from the outside, but they are absolutely critical to the efficiency, safety, and scalability of modern industry. Whether you’re an OEM designing your next machine, or a system integrator managing a large-scale project, the right control panel makes all the difference.
If you’re looking for a reliable partner to build high-quality, custom control panel manufacturer, get in touch with ACP Solutions Inc. We serve customers across Canada and the United States with speed, precision, and integrity.
Want to learn more? Subscribe to our blog for monthly insights into control panel design, automation trends, and more.
